Ultra-Compact High-Brightness Pink LEDs Utilizing Original Phosphor Technology with Superior Wavelength Accuracy

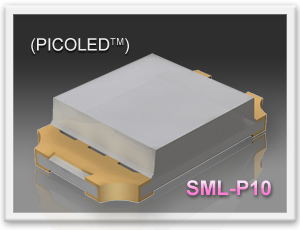

ROHM's PICOLEDTM series combines proprietary high-brightness device and ultra-fine process technologies, resulting in the thinnest, smallest form factor on the market with minimal brightness degradation. Mounting area and volume are reduced by 53% and 74%, respectively, compared to conventional 0603-size products, while miniaturization technology, which includes ultra-low molding and wire loop/element reduction, enables a thickness of only 0.2mm – a breakthrough achievement.

The EXCELEDTM series of compact surface mount LEDs utilizes novel device and phosphor technologies along with superior wavelength accuracy (±2%), making it possible to provide a broader range of colors – including pastels and custom colors not previously available – expanding design applicability.

In observance of Breast Cancer Awareness Month, all proceeds from the sales of ROHM pink LEDs shipped through Digi-Key Corporation (a ROHM distributor) until the end of October will be donated to the Susan G. Komen Foundation for breast cancer research.
