High Power Intelligent Soft Starts

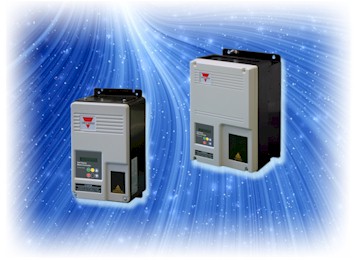

Carlo Gavazzi is pleased to announce the arrival of the RSQK Series High Power Intelligent Soft Starts, which are designed to improve performance of industrial applications up to 900 Amps / 750 Hp. They decrease the “wear and tear” of mechanical transmission components (such as belts) and reduce the high starting currents and mechanical stress on gears, shafts and pulleys, thanks to smooth and step-less acceleration and deceleration. These soft starts are the perfect solution vs. variable frequency drives for industrial applications in higher power range (>100Hp).

The RSQK Series features are well suited for applications such as controlling large pumps, fans and mixers starting at the 200Hp range, that generally require only a limited number of starts and stops.

Compared to other soft starts, the RSQK Series Soft Starts are provided with an automatic energy optimizing feature that can successfully increase efficiency, especially in lightly loaded applications, thus saving energy without any drawbacks on the motor or system. The device is also provided with an automatic application setup, thus guaranteeing lower installation costs and quicker commissioning. Some key technical specifications include:
  •     3-phase controlled soft start with internal bypass
  •     UL listed range: 23-900 Amps at 230 and 480VAC
  •     Automatic energy optimizing feature
  •     6-button keypad with LCD display for continuous display of relevant parameters
  •     Motors, resistive (heater) control and inductive (transformer) loads
  •     In-line or inside delta wiring operation capability
  •     Maximum cUL motor rating at 460VAC: 750 horsepower
  •     Up to twelve starts per hour
  •     History of last five trips
  •     Optional Modbus and remote keypad operation for multiple soft start control
  •     cULus listed and CE marked
