Comprehensive Range of Conductive Level Controls

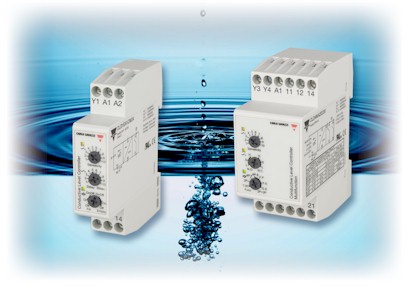

Carlo Gavazzi is proud to launch the next generation of our CLD & P Series of conductive liquid level controllers. We have taken the advanced, multi-function capabilities of previous models, added some additional options, and introduced a simplified user interface!

With the multi-function capabilities and new options, we are able to streamline our product offering, from 63 mostly single-function models down to 16.

Some of the key features include:
  •     Expanded sensitivity ranges, with most models able to detect liquids from 250 Ohms to 500 KOhms
  •     Dip switches on previous models replaced with rotary switches on front panel for easier setup
  •     Teach-in push buttons replaced with potentiometers, allowing customers to install and program the sensor without liquid in tank
  •     3 Power supply types: 24 VAC/DC, 115 VAC, and 230 VAC
  •     LED indicators for Power and Output indication
  •     New Tank-Well function allows a single controller to control pumping operations of both an in-ground well and above-ground tank
  •     Master-slave function allows up to seven controllers to be connected together
  •     New single point controller features a built in timer (up to 30 seconds adjustable) for filling or emptying applications
The new CLD & P Series replaces older CLD & P versions which had teach-in buttons, as well as older S-System single function controllers. A cross reference guide is available (see link below).

The new CLD & P Series are available in DIN-rail mount as well as plug-in style housings. All models are UL, cURus and CSA approved and carry the CE and RoHS marks.
