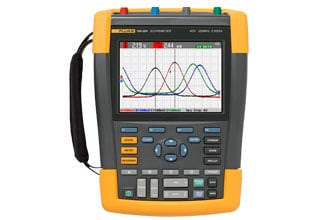

Fluke 190 Series II ScopeMeter Test Tool

The first four- and two-channel scopes built for CAT IV industrial environments.

Extend your arsenal of troubleshooting capabilities by visually inspecting signals amplitude, time, shape and disturbance or distortion characteristics. The Fluke 190 series combines the power of a high performance oscilloscope, multimeter and paperless recorder in an easy to use test tool you will come to rely on in the field.

As the first two and four-channel portable scopes safety rated CAT III 1000V / CAT IV 600V, the new Fluke ScopeMeter® 190 Series II combines an unprecedented level of performance, ruggedness, and portability. You can choose from 60MHz, 100MHz or 200MHz bandwidth models, both with real-time sampling rates up to 2.5 GS/s and 400 ps resolution to capture noise and other disturbances. Both models feature deep memory—up to 10,000 samples per channel— so you can examine very small parts of the waveform in detail. And both are IP-51 rated to withstand dust, drips, humidity, and wide temperature variations. Fluke ScopeMeter test tools are hand-held battery operated, designed to meet the demands of field service professionals.
