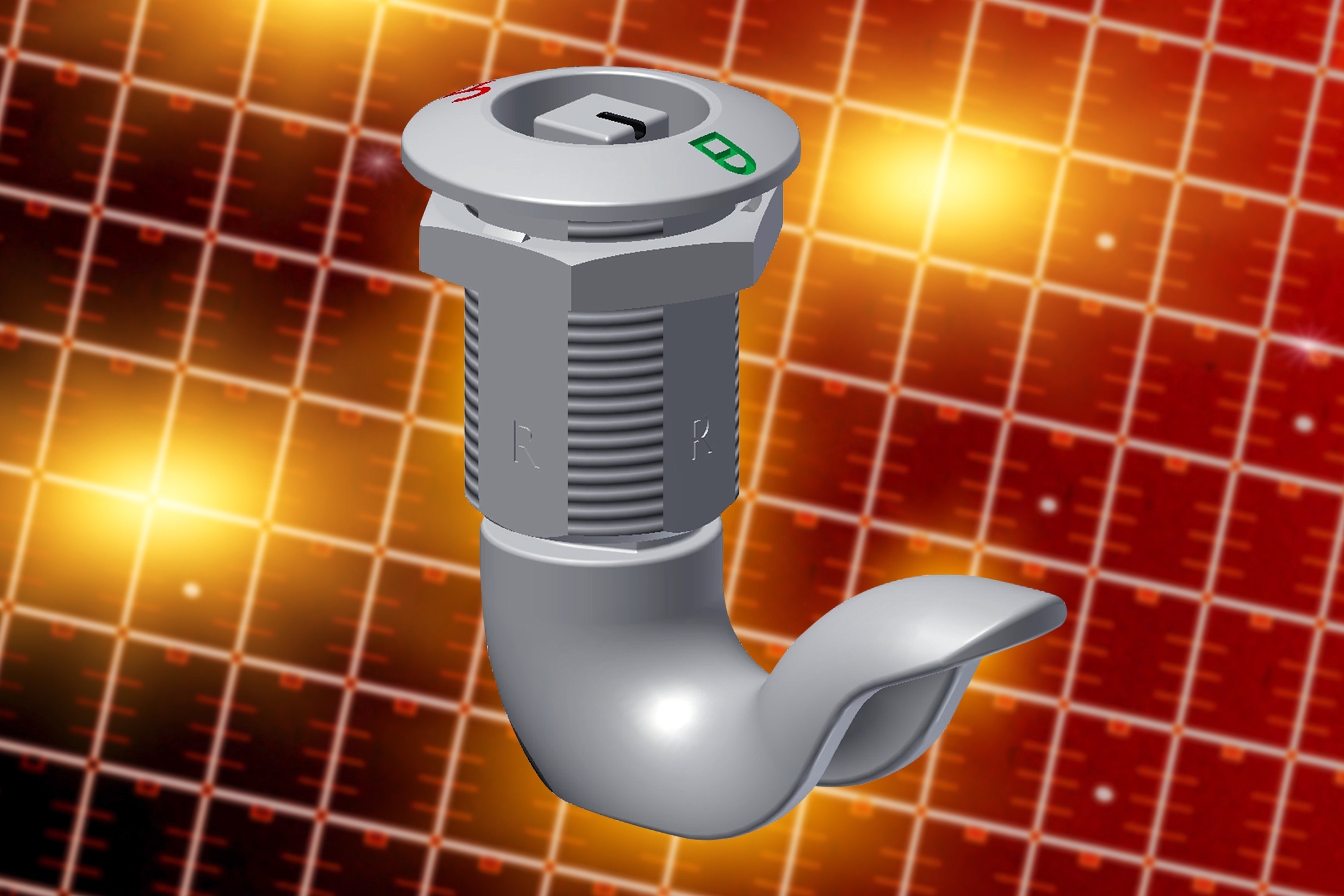

IP65 Compression Latch with Colour Open/Closed Indicator

IP65 compression locks like the 1-077 from FDB Panel Fittings are becoming ever more popular for applications requiring quick and reliable door closure without rattling, even when subjected to IP65 COMPRESSION LATCH WITH COLOUR OPEN/CLOSED INDICATORsignificant vibration. It is therefore ideal for vehicle on-board cabinets, panels, compartmentdoors, as well as gen-set packs, HVAC equipment or similar.

Compression technology in this style is ideal for soft clamping and positive gasket pull-down to ensure positive sealing, especially on larger doors. The 1-077 features IP65 sealing capability and a compression stroke of 6.5mm with fully closed dimensions of 22, 24, 28 or 38mm, dependant upon specification. A particular feature is its colour indicator for open/closed on the latch head, which provides instant recognition of the lock position. Door thicknesses of from 0.8mm to 22mm may be accommodated with LH or RH configurations as required.
