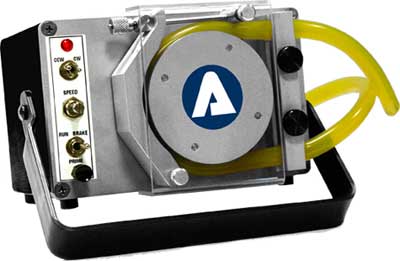

Aalborg Introduces TPU Tube Pumps

Aalborg model TPU tube pumps are suitable for liquids of low to medium viscosity. Chemically resistant tubing materials and peristaltic pump head technology provide reliable, long-term pump operation. Four stainless-steel rollers (an eight roller option is available) minimise pulsation and promote longer tube life.

The TPU's tube set-up, changes and replacements are quick and easy, said Aalborg. Inside diameters offered are 1/8in, 3/16in, 1/4in or 5/16in, each with a 1/16in wall thickness. The size and material of the tubing chosen, as well as the selected fixed RPMs of the motor drive, determine the flow rate. The pumped fluid never touches the pump.

This model is claimed to deliver smooth, precise operation and virtually eliminate maintenance problems. Pump design features include: sturdy occlusion wall and back plate; self-priming; small footprint design; flexible mounting; 115V or 230V service; and fixed RPM AC gear motors.

Industry applications include science and research, OEM, processing, engineering, agriculture, analytical chemistry experiments, pharmaceutical production, sewage sludge, paint and pigments, pulp and paper, food manufacturing, beverage dispensing and carbon monoxide monitors.
